F5 Moly Octagonal Ring Type Joint Gasket ASME B16.20
F5 moly octagonal ring type joint gasket can be manufactured according to ASME B16.20 and API 6A standard specifications. Free Samples and Short Delivery Time
Content

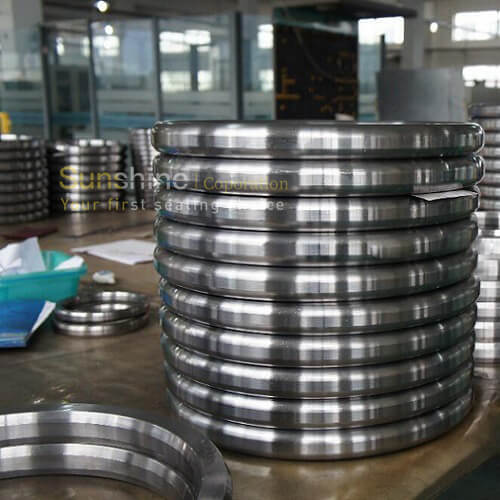

F5 Moly Octagonal Ring Type Joint Gasket ASME B16.20 - RTJ 301
F5 moly octagonal ring type joint gasket ASME B16.20 is made of F5 chrome moly according to ASME B16.20 specification. It has a fairly high electrical conductivity among wrought alloy steels in the same category. In addition, it has a moderately high base cost and a moderately high embodied energy.We are the manufacturer and supplier of high quality F5 steel ring type joint gasket, and all the rtj gaskets can be made according to ASME B16.20 and API 6A standard specifications. The gasket size we can make from R11 to R105.
Physical Properties of F5 Steel RTJ Gaskets
| UNS | Grade |
Ni |
C ≤ | Mn | Si≤ | S≤ | N | Cr | Mo |
| K41545 | F5 | - | 0.15 | 0.3 - 0.6 | 0.5 | 0.030 | 0.24 - 0.32 |
4 - 6 |
0.44 - 0.65 |
Mechanical Property
| Ultimate Tensile Strength (Mpa) | Elongation % |
Yield Strength MPa |
Density g/cm3 |
Hardness (HRC) |
| ≥415 | ≥ 30 | ≥ 205 | 7.85 | - |
